Electric Series

Our Newest Shuttlewagon, Powered by Colmar

Shuttlewagon offers the most complete electric series in the industry, offering units with tractive effort from 3,600 lbs all the way up to 45,000 lbs.

Eight New Zero Emission Electric Models ideal for Metro, Mines, Ports, Railways Cargo, Railways Industrial, and Passenger Rail
Shuttlewagon Electric

Select Model Below

  • SWXe-16
  • SWXe-25
  • SWXe-32
  • SWXe-50
  • SWXe-90
  • SWXe-120
  • SWXe-160
  • Electric Navigator
Shuttlewagon, Powered by Colmar - SWXe 16 - red
Model

SWXe-16

Single Couple Tractive Effort
3,100 lbs

Max Tow
310 tons

Electric Motor
9.0 hp

L.E. Battery
420Ah/80V

Shuttlewagon, Powered by Colmar - SWXe 25 - red
Model

SWXe-25

Single Couple Tractive Effort
5,250 lbs

Max Tow
525 tons

Electric Motor
18.3 hp

L.E. Battery
700Ah/80V

Shuttlewagon, Powered by Colmar - SWXe 32 - red
Model

SWXe-32

Single Couple Tractive Effort
7,400 lbs

Max Tow
740 tons

Electric Motor
30 hp

L.E. Battery
1,000Ah/80V

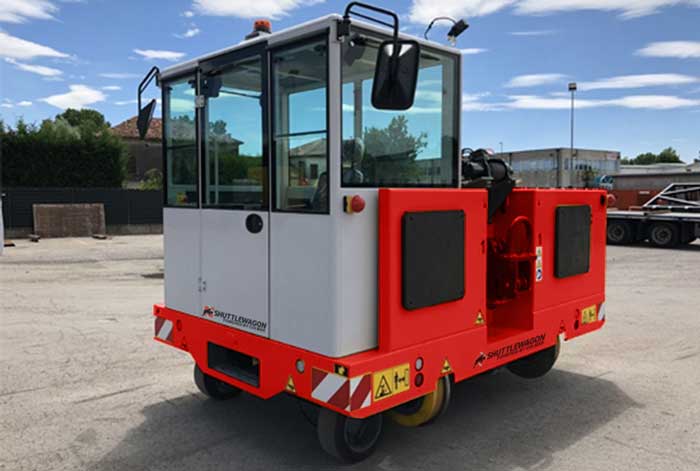

Shuttlewagon, Powered by Colmar - SWXe 50 - red
Model

SWXe-50

Single Couple Tractive Effort
10,000 lbs

Max Tow
1,000 tons

Electric Motor
43 hp

L.E. Battery
1,000Ah/80V

Shuttlewagon, Powered by Colmar - SWXe 90 - red
Model

SWXe-90

Single Couple Tractive Effort
20,000 lbs

Max Tow
2,000 tons

Electric Motor
2×27 hp

L.E. Battery
2×1,000Ah/80V

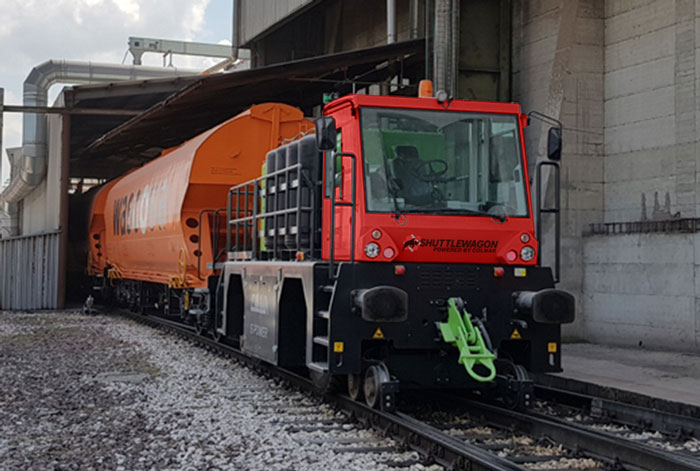

Shuttlewagon, Powered by Colmar - SWXe 120 - red
Model

SWXe-120

Single Couple Tractive Effort
26,000 lbs

Max Tow
2,600 tons

Electric Motor
2×40 hp

L.E. Battery
2×1,000Ah/80V

Shuttlewagon, Powered by Colmar - SWXe 160 - red
Model

SWXe-160

Single Couple Tractive Effort
32,000 lbs

Max Tow
3,200 tons

Electric Motor
2×54 hp

L.E. Battery
3×1,400Ah/80V

All electric shuttlewagon - mobile railcar movers
Model

NVXe

Single Couple Tractive Effort
45,000 lbs

Max Tow
4,500 tons

Electric Motor
155 hp cont. 230 hp intr.

L.E. Battery
n/a

Contact Shuttlewagon Today

Let us know which of the Shuttlewagon Compact Electric models fits the needs of your organization
